Product Descriptions
TF3500 is the film lamination machine for pulp molding tableware items.
The machine is equipped with four work stations: 1 for loading products, 2 for preparation; 3 for lamination; 4 for output. The mold circulates in four stations to realize automatic continuous production.
The application film: PE, PET, PLA, PBAT and etc
The machine can match a robotic arm, to make forming, laminating and edge cutting automatically.

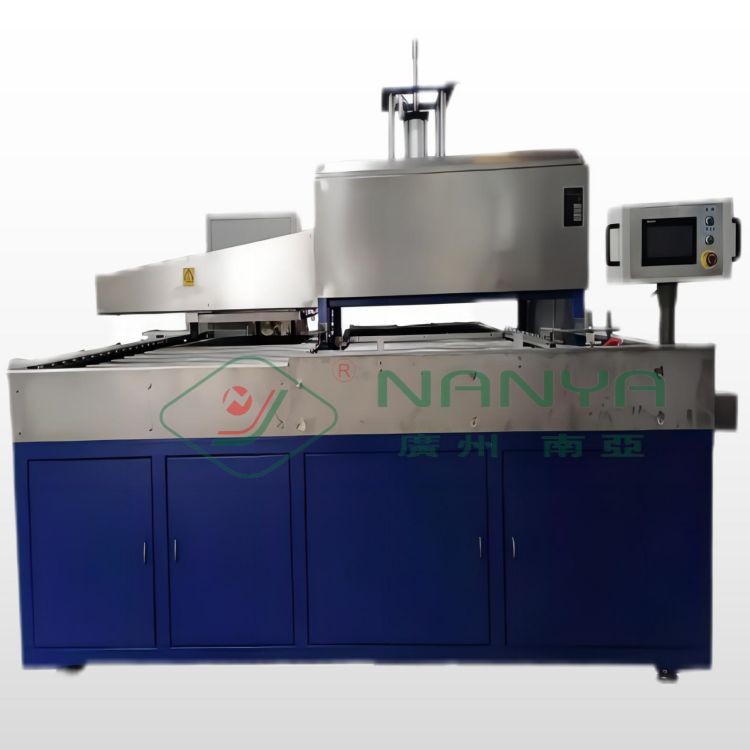

Pulp Molding Tableware Film Lamination Machine
Product Parameters
|
Product name |
Pulp Molding Tableware Film Lamination Machine |
|
Model |
F-3500 |
|
Operation area |
1100mm×1000mm |
|
Cycle time |
30~50s |
|
Film application |
PE, PET, PLA, PBAT |
|
Height of product |
20~110mm |
|
Power |
50kw |
|
PLC+HMI control |
Siemens |
|
Dimension |
around 3700*3230*2400mm |
Lamination Machine Diagram
Lamination Machine Advantages
|
Big laminating area |
1100*1000mm |
|
Maximum product size |
1000*900*110mm |
|
4 working stations |
Save waiting time and thus improve efficiency |
|
Vacuum system |
A vacuum pump is stalled inside the lamination machine |
|
Can match a robot |
https://youtu.be/jB11NKns27I?si=gV23Llf7ioJI10p_ |
Applications

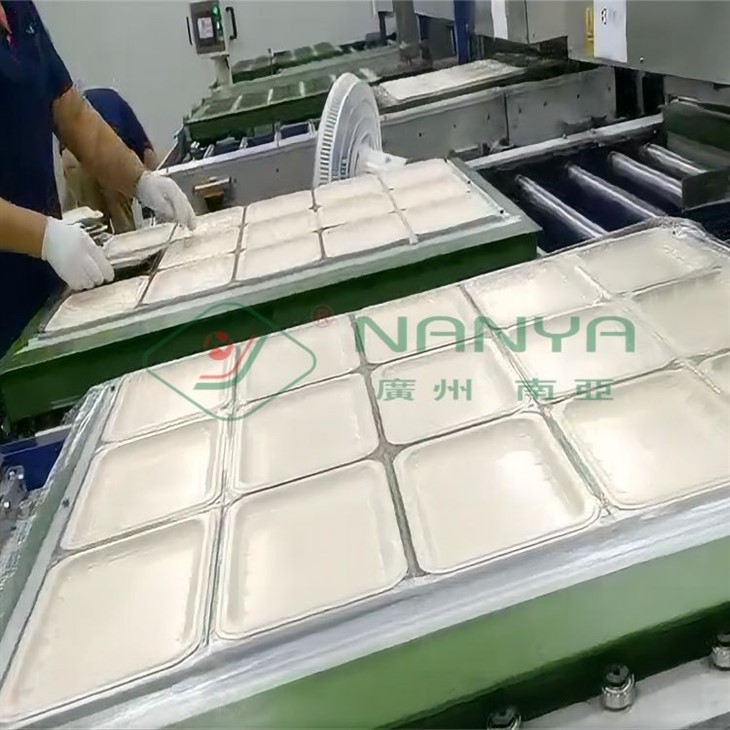

By changing molds, the same lamination machine can laminate film for different shape of tableware items, such as food trays, paper plates, paper bowls, paper cups, cup lids, lunch containers, clamshell and etc.
NANYA Advantages
● NANYA uses electrical control parts from SIEMENS and pneumatic control parts from FESTO and SMC, which ensures that the machines are well equipped and safe to use.
● PLC control and touch screen make the machines easy to operate and stable.
● NANYA mould centre and CNC machine help develop and design moulds for customers' products.
● NANYA provides life-long service and provide sustainable supply and upgrade machines and parts to ensure customer satisfaction for the long term.
● NANYA has excellent team of engineers, sales personnel, and after sales service team, which ensure long-term satisfaction for the customers
