Product Description
This is a fully automatic disposable paper plate making machine, product forming, hot pressing, edge trimming and stacking are done automatically, which is high efficiency and save labor.
Take sugarcane pulp or reeds pulp, straw pulp, bamboo pulp and other clean paper pulp as raw material, 100% biodegradable.
By changing the molds, the machine can produce different kind of products, such as paper plates, paper bowl, food containers, cup lids, high quality industrial packages and etc.
The capacity of each single forming machine is round 30~40kg/hour, it can match multiple forming machine in the line. The exact capacity will be matched based on the customer’s demand.

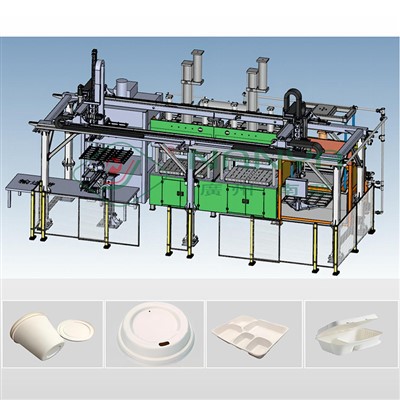

Automatic Forming Machine+Robot
Product Parameters
|
Product Name |
Disposable Paper Plate Making Machine |
|||
|
Model type |
TA-02B |
TA-05B |
TA-08B |
TA-10B |
|
Forming Machine Quantity |
2sets |
5sets |
8set |
10sets |
|
Mold plate size |
1300*1100mm, 1pc of forming mold, 1pc of hot press mold. |
|||
|
Capacity |
60~80kg/hour |
150~200kg/hour |
240~320kg/hour |
300~400kg/hour |
|
Workshop Requirement |
≥600m2 |
≥1000m2 |
≥1500m2 |
≥2000m2 |
|
Electricity Consumption |
220~280kw |
250~300kw |
400~500kw |
500~600kw |
|
Fuel consumption (Natural gas) |
0 |
45~55m3/hour |
90~130m3/hour |
110~160m3/hour |
|
Material Consumption |
60~80kg/h |
150～200kg/h |
240～320kg/h |
300～400kg/h |
|
Water Consumption |
150~200kg/h |
500~600kg/h |
800~1000kg/h |
1200~1400kg/h |
Flow Chart
Working Theory
1.The track or worker carries the raw material, such as bagass pulp, bamboo pulp or wood pulp and etc;
2.Then the conveyor pours down the raw material into the hydrapulper mixing with certain water;
3.Then the mixed paper pulp will going into the pulp adjustment tank, adding the water proof and oil proof chemicals.
4.The pulp will flow into the second pond called pulp supply tank, in which the pulp keeps a consistency stably(around 0.3%);
5.The pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum. So the wet products are shaped.
6.Finally the wet products will move into the hot press mold automatically. Then the products will get edge cutting and packed automatically.
For more videos, just subscribe “Guangzhou NANYA Pulp Molding Equipment Co., Ltd” on YOUTUBE.
Machine Advantages
1.Use high-pressure water system to clean the molds and the rough edges of products.
2.Use precision reducer servo motor forming and transferring to ensure smooth and fast operation.
3.Can match robots to edge trimming and stack products automatically.
4.Use well known brand of control parts, such as SIEMENS FESTO & SMC and etc, more stable and reliable.
Applications
All kinds of disposable tableware, such as
Paper Plates & Bowls
Fast Food Take-away Box
Supermarket Fresh Trays
Food container
Cup & Lid
Cup Holder & Carriers
What NANYA Provide
1. Pulp Molding Machine Manufacturing, including tableware thermoforming machines, egg tray/egg box/ fruit tray machines, machines for general quality industrial packages and high quality industrial packages.
2. Mould, Tool and Die Set Manufacturing. We have our mould center, we have professional team for designing and making moulds.
3. Project Management/Turn-key production line. We will make quotation and analysis based on customer’s investment and capacity and provide the complete production line.
4. Training the industry of know-how. We will send 1 or 2 engineers to customer's plant for installation guidance and debug; Training includes the structure explanation of the equipment, production technology, maintenance and common troubleshooting and practical exercises.
