Product Descriptions
This is a fully automatic egg tray machine with high capacity output and less energy consumption.
Mainly consist of pulping system, forming system, drying dryer, air compressor system, vacuum system and other auxiliary equipment.
The paper pulp egg tray molded machine takes the waste paper as the raw material and make all kinds of paper tray products, such as egg trays, egg cartons, fruit trays, cup carriers and disposable medical care products.
Machine Picture
Product Parameters
|
Product name |
Paper Pulp Egg Tray Molded Machine |
|
Model |
ER6000-B |
|
Capacity |
6000pcs/hr(for 30cell egg tray or 12cell egg carton) |
|
Usage |
To make egg tray, egg carton, fruit tray, cup carrier, bottle tray,seeding cup... |
|
Applicable industries |
Poultry, animal husbandry, agriculture,paper industry |
Consumption Parameters
|
Description |
Consumption Per Hour |
Remark |
|
Waste Paper/Corrugated paper |
380~420kg per hour |
|
|
Water |
1.5~2.2ton/h |
|
|
Electricity |
210~230kw |
325kw installed |
|
0#Diesel Oil |
75-105kg/hr |
Choose one from the three types of fuel |
|
Natural Gas |
90-120m³/hr |
|
|
LPG |
35-40kg/hr |
Other Capacity Option
|
Model |
Forming Type |
Capacity |
|
ER8000-B |
Rotary egg tray manufacturing machine |
7500~9000pcs/hour |
|
ER6000-B |
5500~6000pcs/hour |
|
|
ER5000-B |
4500~5000pcs/hour |
|
|
ER4000-B |
3500~4000pcs/hour |
|
|
ER3000-B |
2500~3000pcs/hour |
|
|
EC2900-A |
Reciprocating egg tray manufacturing machine |
2500~3000pcs/hour |
|
EC2400-A |
2000~2400pcs/hour |
|
|
EC1900-A |
1600~2000pcs/hour |
|
|
EC1500-A |
1300~1500pcs/hour |
|
|
EC1200-A |
1000~1200pcs/hour |
|
|
EC1000-A |
800~1000pcs/hour |
|
|
EC700-A |
600~700pcs/hour |

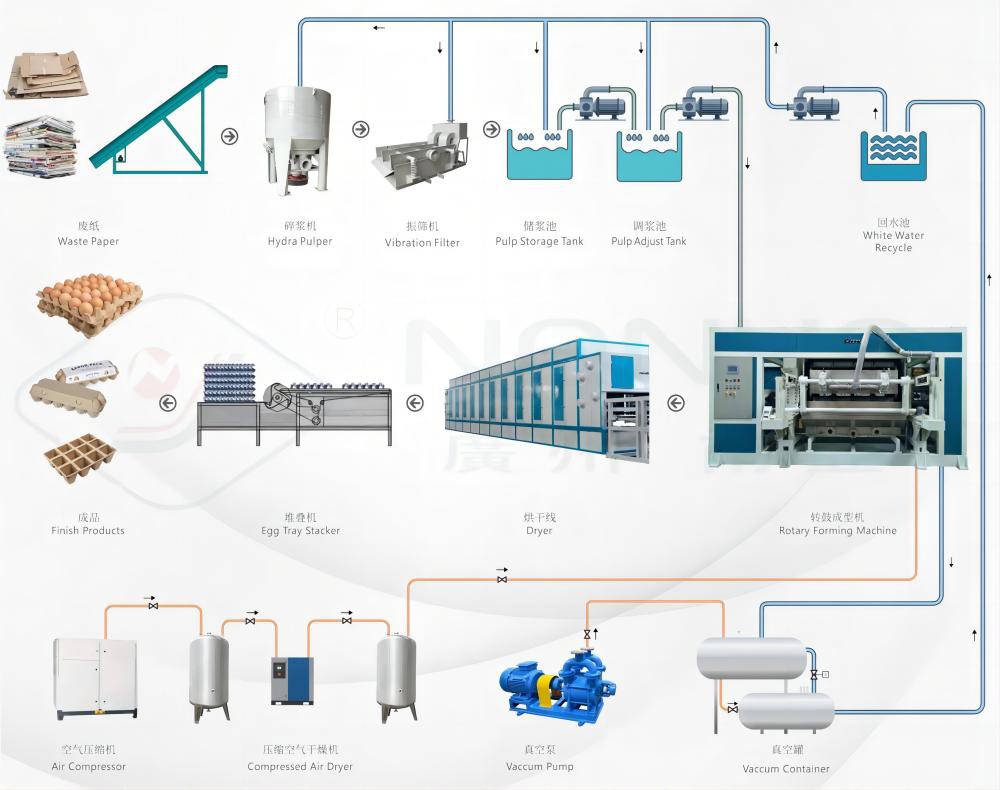

Production Line Process
How the Egg Tray Line Makes Up
Production line is constituted by a hydrapulper system, a rotary type forming machine, a six-layer dryer, and auxiliary equipment.
Application
By changing molds, the rotary forming machine can make egg tray, egg carton, fruit tray, cup holder, kidney tray and etc.
Competitive Advantages
Fully automatic paper pulp egg tray molded machine with high capacity and low energy consumption.
The rotary molding process ensures uniformity of the egg tray shape and size.
The design of the rotary machine allows for easy loading and unloading of the egg trays, making it a convenient solution for large quantity egg tray production.
Almost 30 years experience in this field, mature technology and rice experience, engineer available overseas for installation and operation guidance.
